Corrugated Flatbed Die Cutters
Cutting Edge Accuracy with Advanced Flatbed Die Cutting Machines
Precision and efficiency are non-negotiable for corrugated die cutting. CUIR’s flatbed die cutters deliver accurate die cut boards even with intricate design requirements. Featuring automatic register control, top and bottom printing, and reduced set up times, CUIR’s die cutters enhance operational efficiency and product quality.

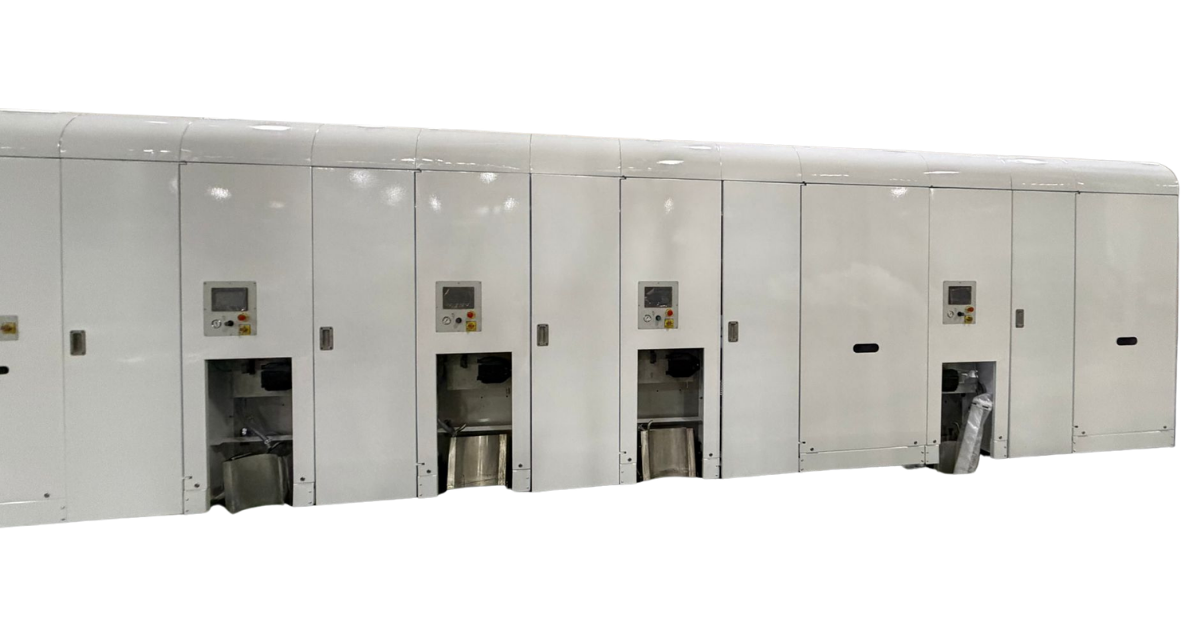

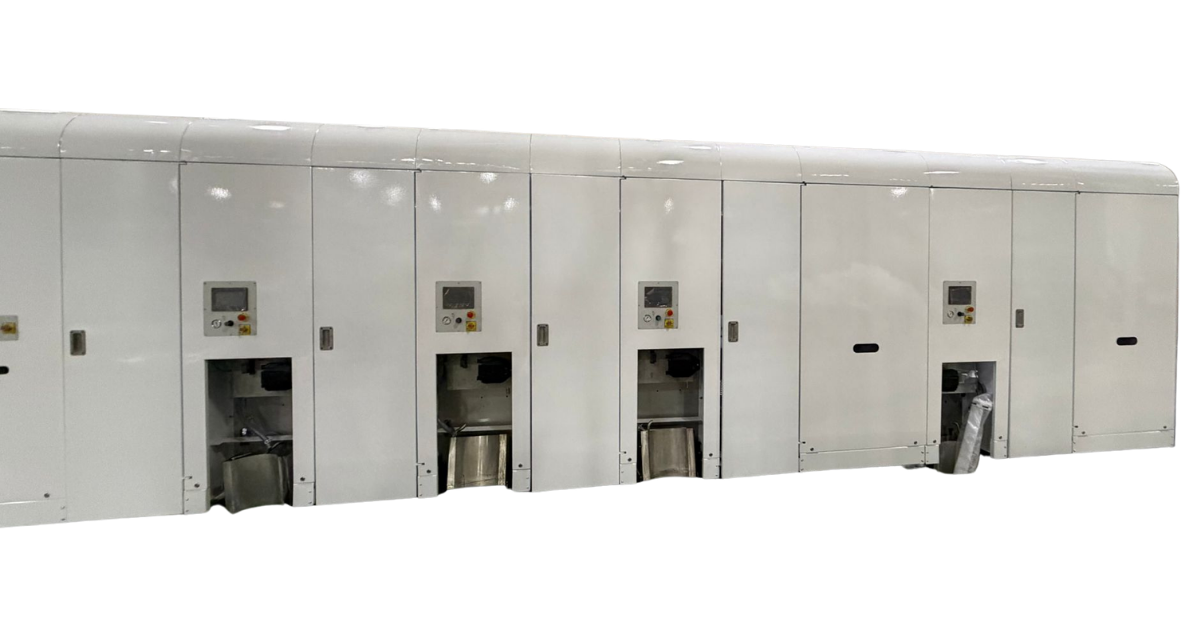

MRV I/O PRINTER DIE CUTTER
Flatbed Die Cutter with Inside/Outside Printing
High Graphics Independent Top and Bottom Printing Units
UP TO
4.000 S/H
SHEET SIZE MIN:
21.65” x 19.68 ”
SHEET SIZE MAX:
51.18” X 66.14”
CORRUGATED BOARD:
0.035” - 0.27”
Plate and impression cylinders nickel-coated
Independent printing units with pivoting transfer (top printers)
Print plate thickness according to the machine
Cutting between bed and cylinder
Centralized settings through Supervision from Wonderware
In-Line printing and die-cutting
Vacuum rolls feeder with direct brushless motors (no trim)
Automatic register control
Top or bottom printing (register between colors +/- 0.01’’ (+/- 0.25 mm)
Carbon Fiber Chamber Doctor Blade System from Absolute
Reduced set-up time
One of a kind print to cut register
Specific register control for litho laminated products
Multi-outs delivery in counted batches
Universal CUIR dies
Remote technical and maintenance assistance
Optional: IR and/or UV dryers, cameras, automatic washing up system, quick change of anilox rolls, dual face dust remover

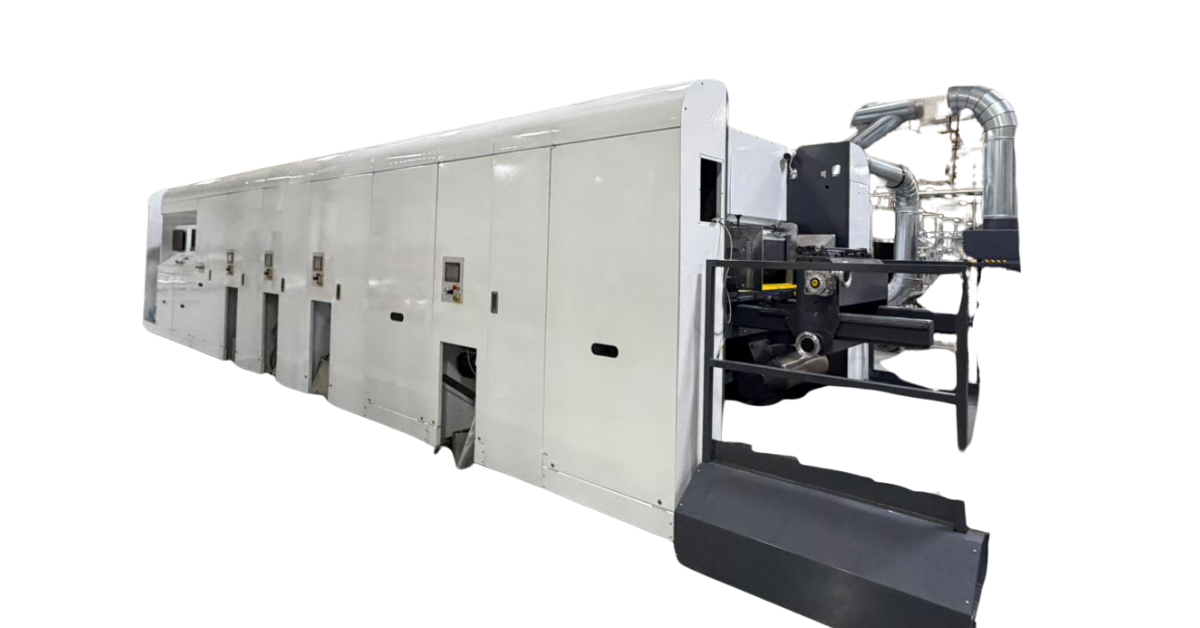

IN-LINE FLEXO FLATBED DIE CUTTER
Flatbed Die Cutter In-Line Printing
High Quality Top Printing Units
UP TO
4.000 S/H
SHEET SIZE MIN:
21.65” x 19.68 ”
SHEET SIZE MAX:
51.57” X 66.92”
CORRUGATED BOARD:
0.03” - 0.35”
Stereo’s thickness according to the client
Cutting between a bed and cylinder
Centralized settings
Reduced set-up time
Perfect accuracy between print and cut
Re-registration option for litho laminated products
In-line printing and die-cutting
Vacuum plate feeder
Top printing
Doctor Blade Inking system
Plate and Impression cylinders nickel coated
Independant printing units
No trim
Delivery: shingle or stacker 2×2 outs (option) or multiouts (option)
Sturdiness and reliability
Universal CUIR dies
Remote maintenance assistance
Optional: IR and/or UV dryers, or cameras.
GHG Partner | Flatbed Die Cutting Machines
With over 85 years in the corrugated machinery industry, CUIR manufactures high quality flatbed die cutting machines. All CUIR machines are 100% designed and manufactured in France by their skilled team of engineers, manufacturers, and technicians. Committed to quality, their customer service includes, installs, retrofits, preventative maintenance, and remote or onsite services.
Greene House Group is the exclusive representative in Arizona, California, Colorado, Idaho, Nevada, New Mexico, Oklahoma, Oregon, Texas, Utah, and Washington for CUIR Die Cutting Machinery.
